1064 nm Picosecond Laser

PL Optics‘ Rb1064 INT Picosecond Laser delivers stable 1064nm ultrashort pulses, ideal for harmonic/two-photon imaging, laser ranging, and supercontinuum generation.

產(chǎn)品介紹

Rb1064 INT is based on SESAM passive mode-locking with an all-PM-fiber architecture. Its optical and electronic modules are highly integrated, yielding a compact and portable design. The laser is a standardized, modular product developed specifically for users integrating multifunctional spectroscopic systems in scientific research.

Technical Advantages:

  • 24/7 High-Stability Operation
  • 10 000+ Mode-Locking Verifications
  • HASS Tested
  • Linear Polarization
  • Opto-Mechatronic Integrated Design

Applications:

  • Harmonic Imaging
  • Two-Photon Imaging
  • Ultrafast Seed Source
  • Laser Ranging
  • Supercontinuum Generation

Technical Specifications:

ParameterValueUnit
Operating Wavelength1064 ± 2nm
Pulse Width<15ps
Repetition Rate50 ± 0.5MHz
Average Power>200mW
Power Stability<0.5 (24 h @ 25 °C)% RMS
Polarization Extinction Ratio>20dB
Output MethodPM single-mode fiber (1 m pigtail)—
Fiber ConnectorFC/APC—
Sync Signal1 V @ 50 Ω—
Operating Temperature10 – 35°C
Dimensions204 × 127 × 70mm (L × W × H)
Cooling MethodAir Cooling—

Test Data:

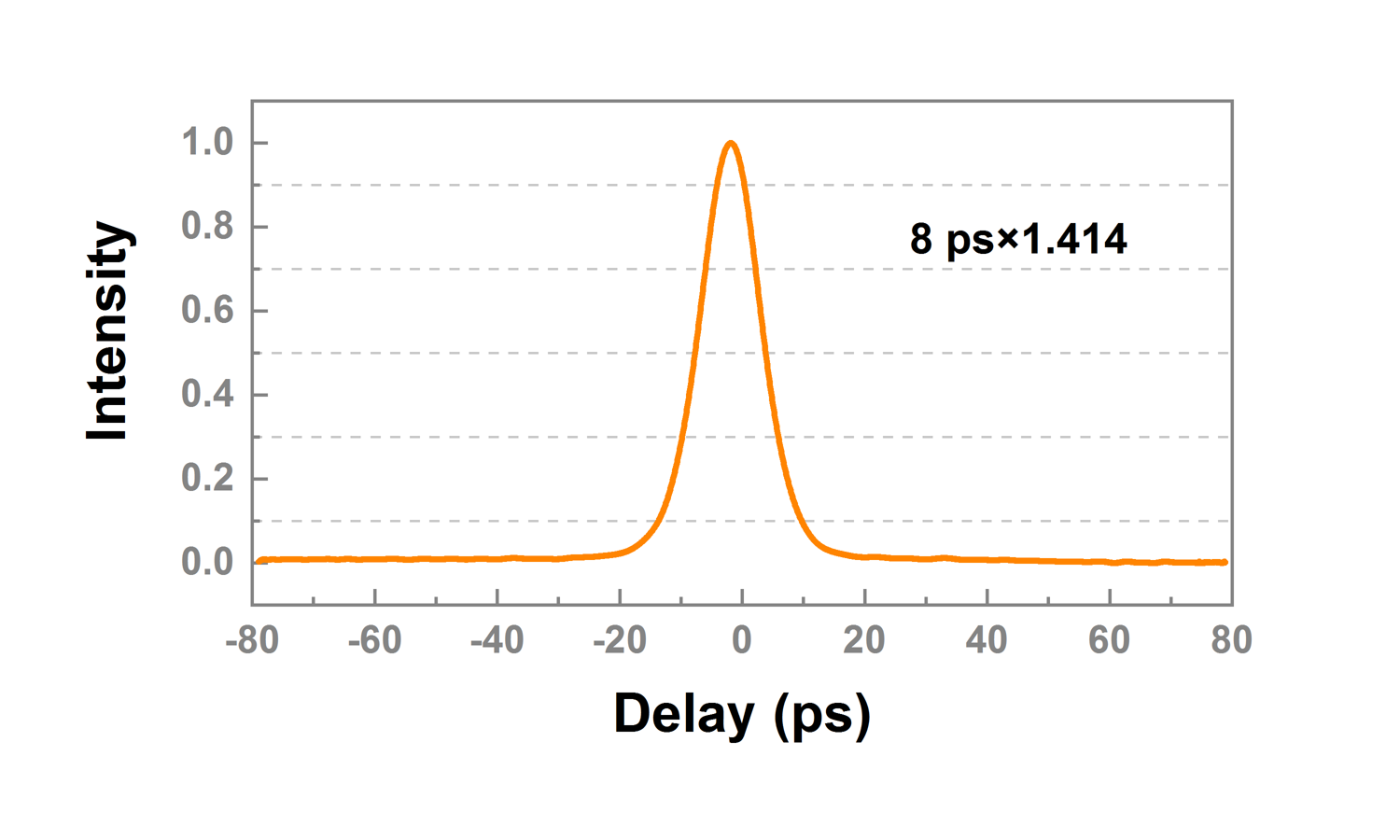

Typical Autocorrelation Trace.png

Typical Autocorrelation Trace

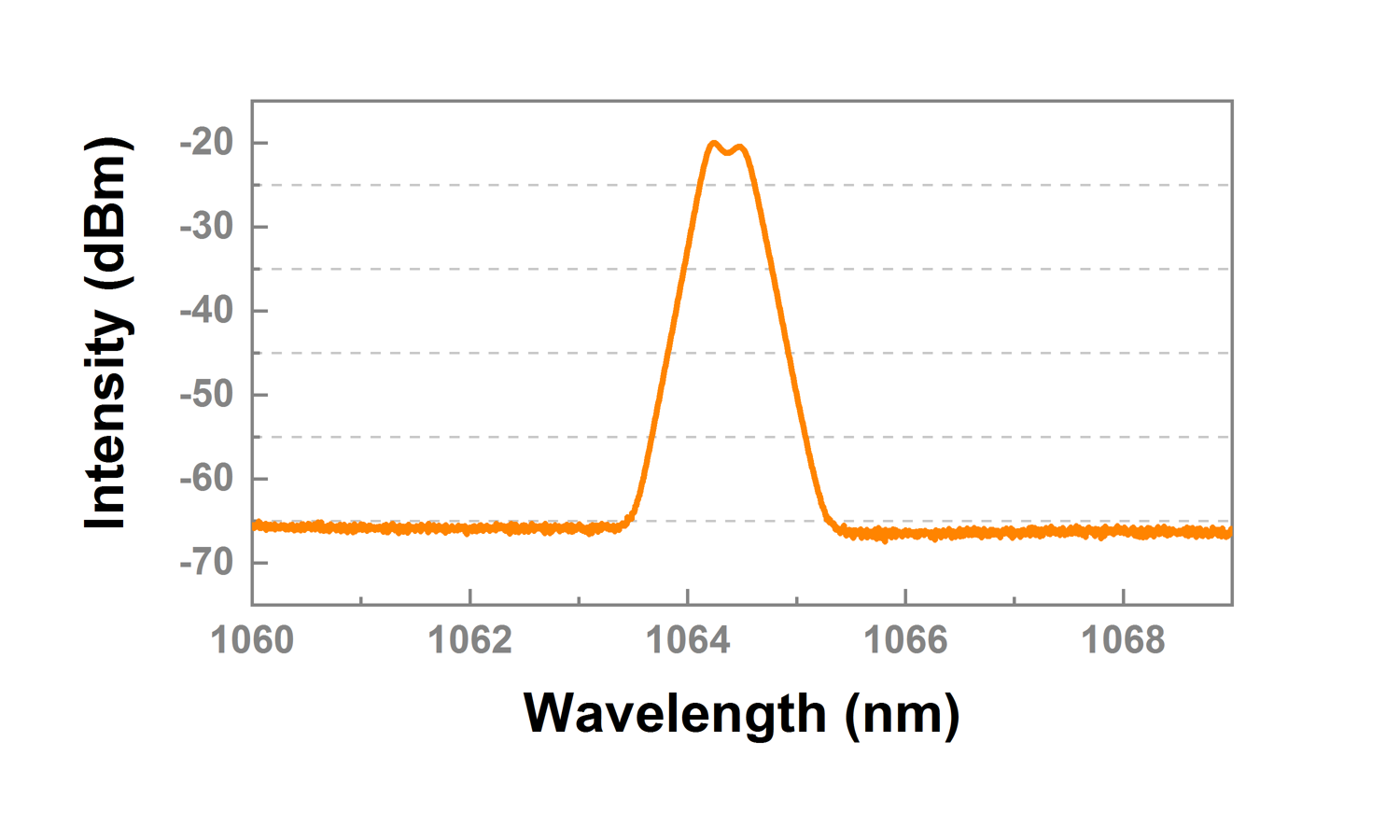

Output Spectrum.png

Output Spectrum

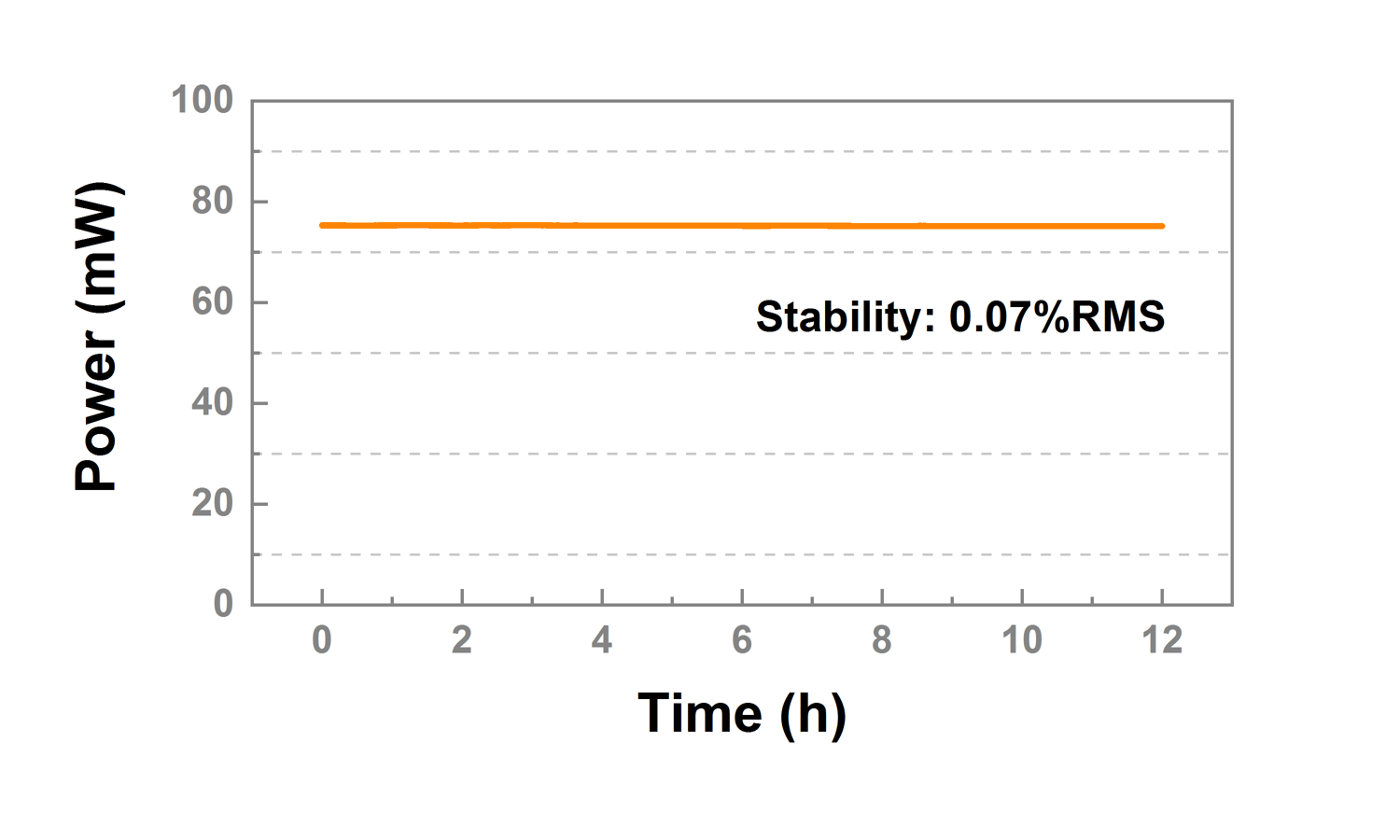

Power Stability.png

Output Power Stability

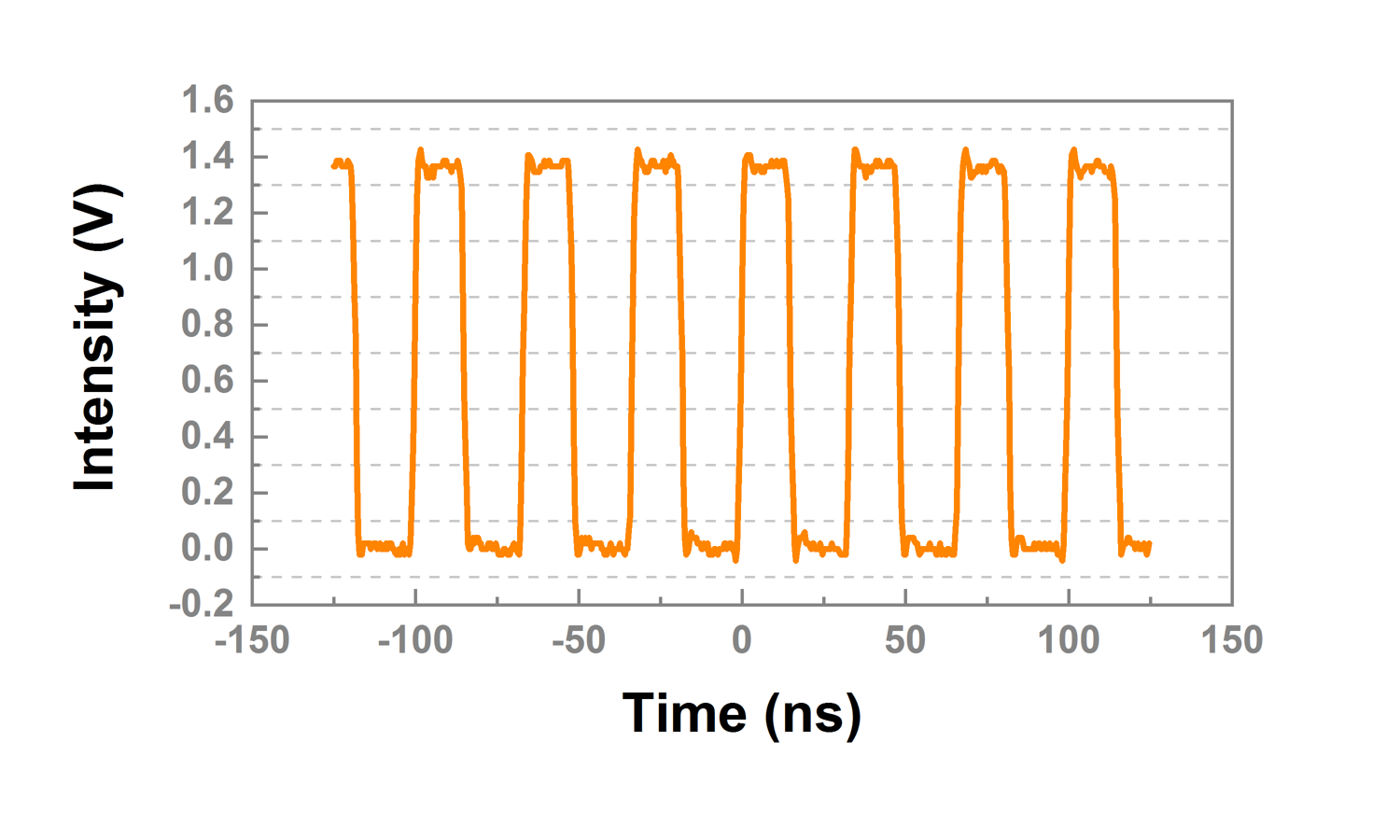

Synchronized Output Pulse.png

Synchronized Output Pulse
