Products

Specialty Camera

PL Optics Specialty SWIR and line-scan cameras feature InGaAs detectors (0.4–1.7 μm), thermoelectric cooling, GigE interface, and high-speed imaging for research microscopy, fluorescence, semiconductor and industrial inspection.

產品介紹

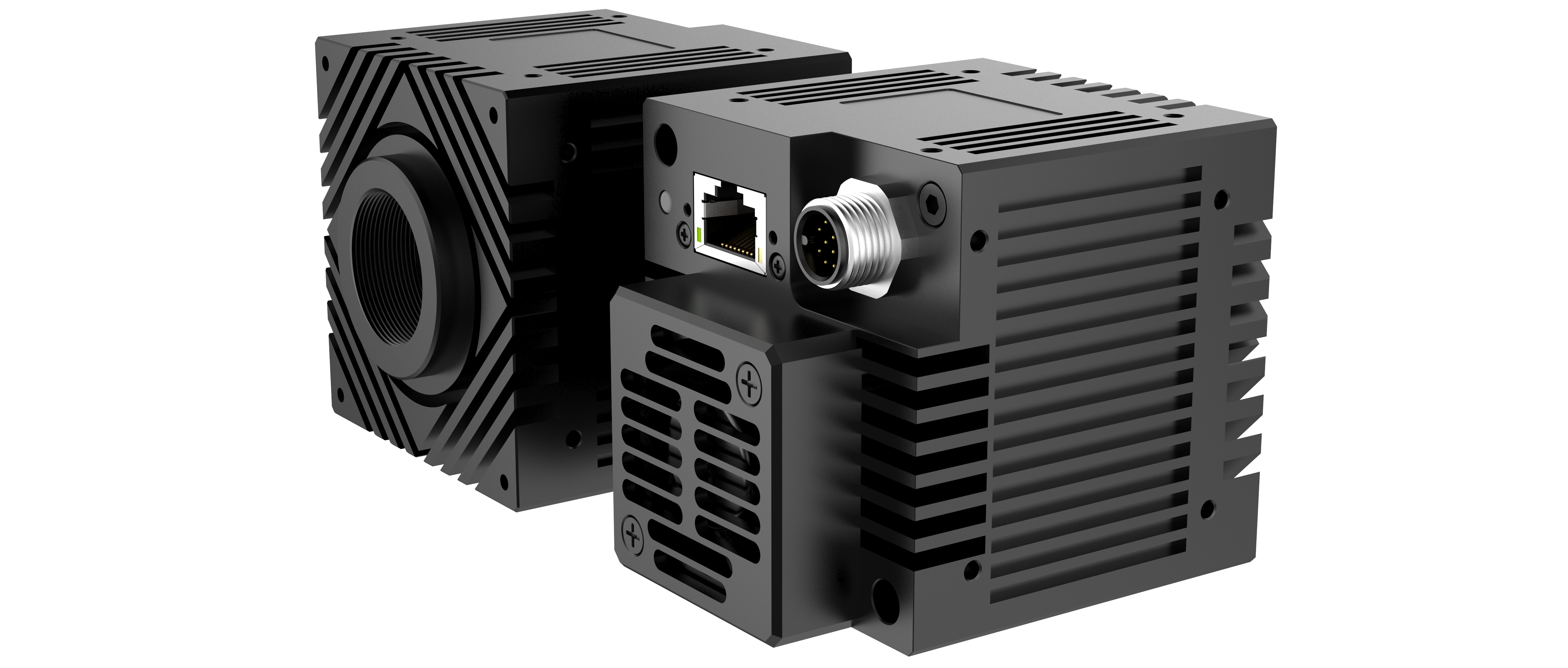

Short-Wave Infrared Camera

Product Appearance


Product Description

A scientific-grade, large-format, high-resolution InGaAs short-wave infrared camera, specifically designed for low-light SWIR research imaging and microscopy. Suitable for fluorescence imaging, laser spot tracking, semiconductor inspection, solar cell testing, hyperspectral imaging, and more.

Key Features

  • ● InGaAs detector, sensitivity 0.4–1.7 μm

  • ● Thermoelectric cooling, ? 20 °C temperature drop

  • ● Optimized for low-light SWIR research imaging and microscopy

  • ● Dark-level correction for excellent uniformity

  • ● GigE interface, Vision standard compliant

  • ● Driver-free support for Halcon, VisionPro, etc.

Applications

Ideal for fluorescence imaging, laser spot tracking, semiconductor inspection, solar cell testing, hyperspectral imaging, and more.

Model Selection

Product ModelImaging ModeResolutionPixel SizeSensor FormatExposure TimeFrame RateShutter Type
FDR-GEM-30NIR640×5125.0 μm × 5.0 μm1/4″0.007 – 2150.4 ms241 fpsGlobal Shutter
FDR-GEM-130NIR1280×10245.0 μm × 5.0 μm1/2″0.013 – 7987.2 ms72 fpsGlobal Shutter
FDR-GEM-500NIR2592×20563.45 μm × 3.45 μm1/1.4″0.007 – 2150.4 ms24 fpsGlobal Shutter

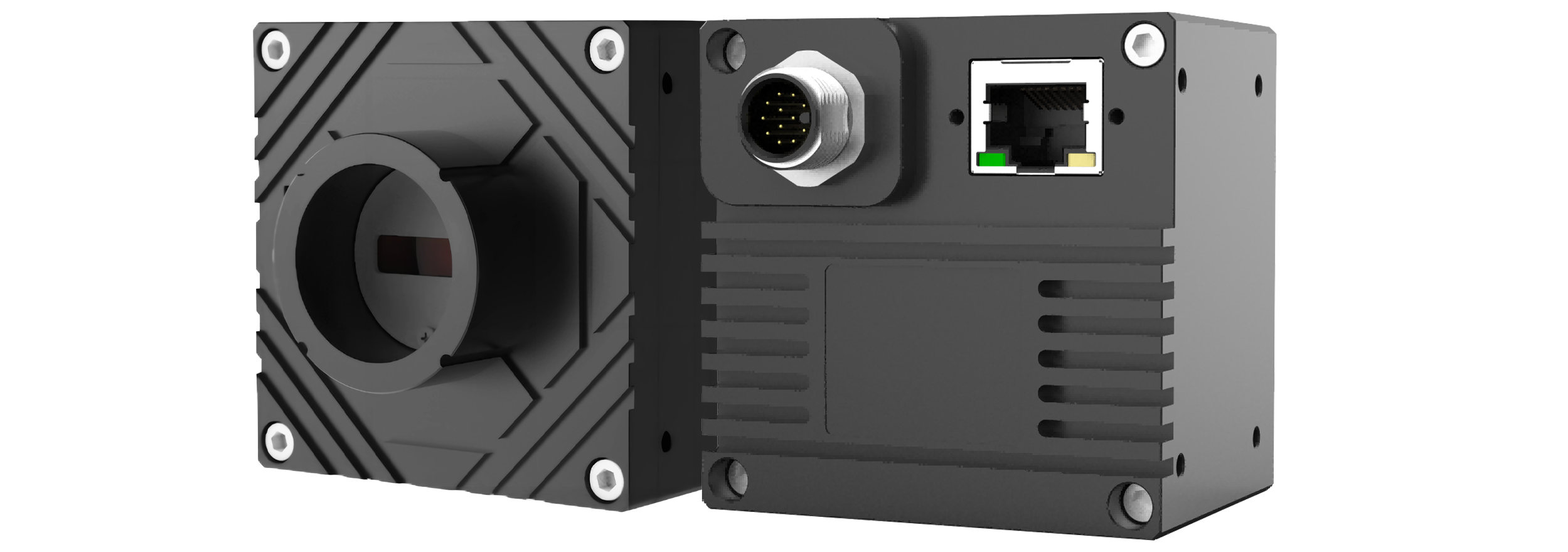

Infrared Line-Scan Camera

Product Appearance


Product Description

The FDR-LEM-18NIR industrial line-scan camera, developed in-house for large-area and high-speed production line inspection. Features a domestic InGaAs sensor, GigE interface, 1K resolution, up to 18 kHz line rate, boosting efficiency and precision in industrial inspection. Integrated ISP algorithms, supporting line-trigger and frame-trigger modes. The MV-GEL101 offers a cost-effective, high-performance solution.

Key Features

  • ● InGaAs sensor, 900–1700 nm band

  • ● Line rate up to 20 kHz, software adjustable

  • ● Hardware supports horizontal pixel ROI and vertical line stitching

  • ● Encoder signal division/multiplication for precise motion matching

  • ● Supports encoder sync, photointerrupter + encoder trigger modes

  • ● Widely used in printing, PV panel inspection, display testing, PCB printing, metal/plastic/fiber inspection

Applications

Printing, PV panel inspection, display testing, PCB printing, metal/plastic/fiber inspection, etc.

Model Selection

Product ModelImaging ModeEffective PixelsPixel SizeMax Line RateExposure RangeSensitivitySpectral Response
FDR-LEM-18NIR1024 × 112.5 μm × 12.5 μm18 kHz0.005 – 50 ms≥ 0.8 A/WSWIR

For detailed specifications or to place an order, visit our store:              Specialty Cameras (SWIR & Line-Scan)
