PI Spectrometer

PI Spectrometers ship pre-calibrated and integrate seamlessly with PI detectors, featuring IsoPlane, LS, TriVista, and SpectraPro platforms for versatile high-performance spectral analysis.

在線咨詢

產(chǎn)品介紹

Princeton Instruments (PI) offers multiple spectrometer platforms that ship pre-calibrated and integrate seamlessly with PI detectors for true plug-and-play performance. Leading models include the IsoPlane imaging spectrometers, LS series high-throughput lens spectrometers, TriVista ultra-high-resolution triple spectrometers, and SpectraPro high-performance imaging spectrometers, covering virtually every research application.

Technical Advantages:

● Modular high-sensitivity solutions connect to PI CCD, EMCCD, ICCD, InGaAs cameras and single-point detectors
● Unified software control for spectrometer, detector & motorized accessories
● Multiple I/O ports and interchangeable components

High-Performance Imaging Spectrometers:


HRS-300	HRS-500

Parameter	HRS-300	HRS-500	HRS-750
Focal Length	300 mm	193 mm	328 mm
Numerical Aperture	F/3.9	F/3.6	F/4.1
Wavelength Range	0–1500 nm
Wavelength Accuracy	±0.2 nm (0.02 nm w/ Intellical)		±0.01 nm
CCD Spectral Res.	0.10 nm	0.07 nm	0.05 nm
PMT Spectral Res.	0.07 nm	0.05 nm	0.03 nm
Inverse Linear Dispersion	2.38 nm/mm	1.52 nm/mm	1.03 nm/mm
Focal Plane Size	14×30 mm
Grating Size	68×68 mm / 68×84 mm (optional)
Step Size	0.002 nm/step

IsoPlane Imaging Spectrometers:


IsoPlane-160	IsoPlane-320

Parameter	IsoPlane-160	IsoPlane-320	IsoPlane-320A
Focal Length	203 mm	320 mm	320 mm
Numerical Aperture	F/3.88	F/4.6	F/4.6
Wavelength Range	0–1400 nm
Wavelength Accuracy	±0.2 nm
Focal Plane Size	27×14 mm (standard)
CCD Resolution (20 μm pixels, 1200 g/mm @ 435 nm)	0.17 nm	0.08 nm	0.06 nm
PMT Resolution (10 mm slit, 1200 g/mm @ 435 nm)	0.13 nm	0.05 nm	0.04 nm
Stray Light	<0.00002
Aberration	100 μm (all wavelengths)	0 μm (all wavelengths)
Step Size (1200 g/mm @ 435 nm)	0.005 nm	0.002 nm	0.002 nm
Spectral Window	57 nm

Integrated Imaging Spectrometer:

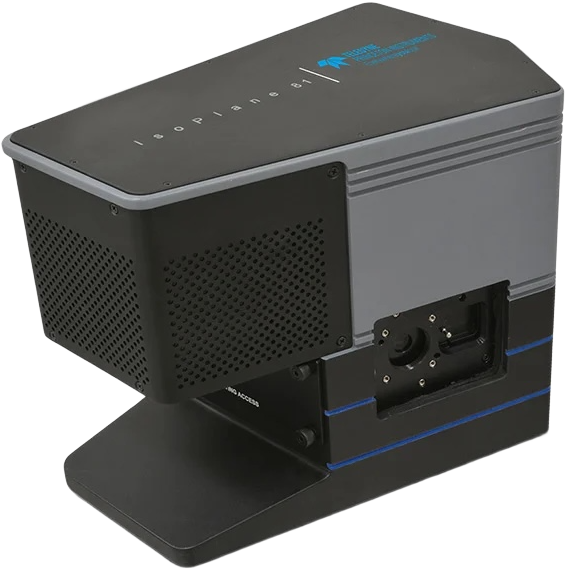

	IsoPlane 81

Parameter	IsoPlane 81
Sensor Pixels	1024 × 256
Focal Length	80 mm
Numerical Aperture	F/4
Spectral Resolution	0.10 nm
Spectral Range	400–1100 nm
Gratings	150–4320 g/mm
Slit	10–500 μm width, 3.3 mm height
Interface	USB 3.0
