Products

PI Scientific Camera

PI Scientific Camera: back-illuminated CCD, high QE, low noise, wide dynamic range

產品介紹

   Princeton Instruments (PI), as a world-class manufacturer of high-performance, high-sensitivity cameras, pursues excellence in every specification. PI’s scientific-grade CCD cameras, Electron Multiplying CCDs (EMCCD), and InGaAs NIR detectors not only deliver outstanding sensitivity and fast response, but also earn a stellar reputation for quality and stability.

PIXIS Series (CCD Cameras)

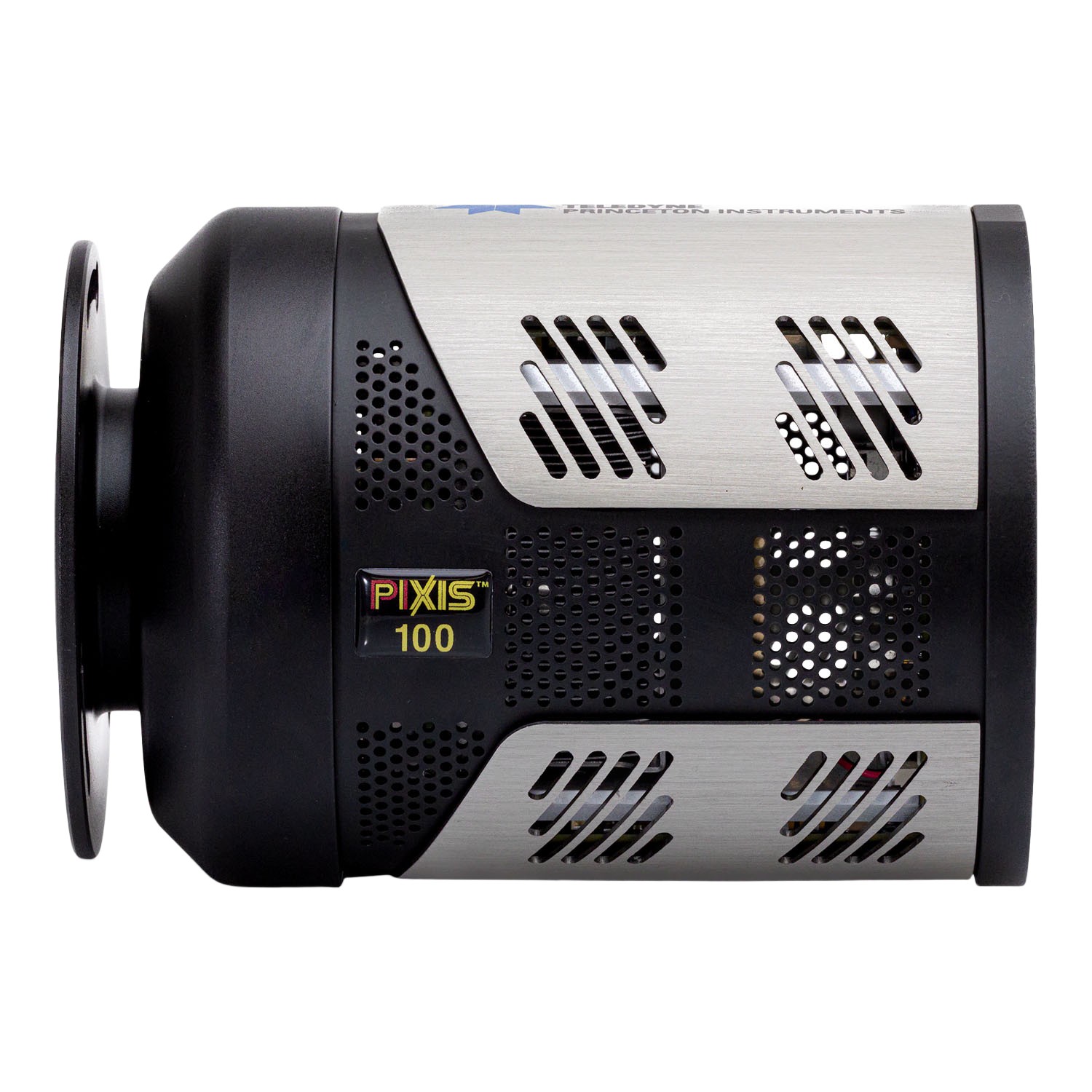

PIXIS 1024 Teledyne Vision Solutions (3).png

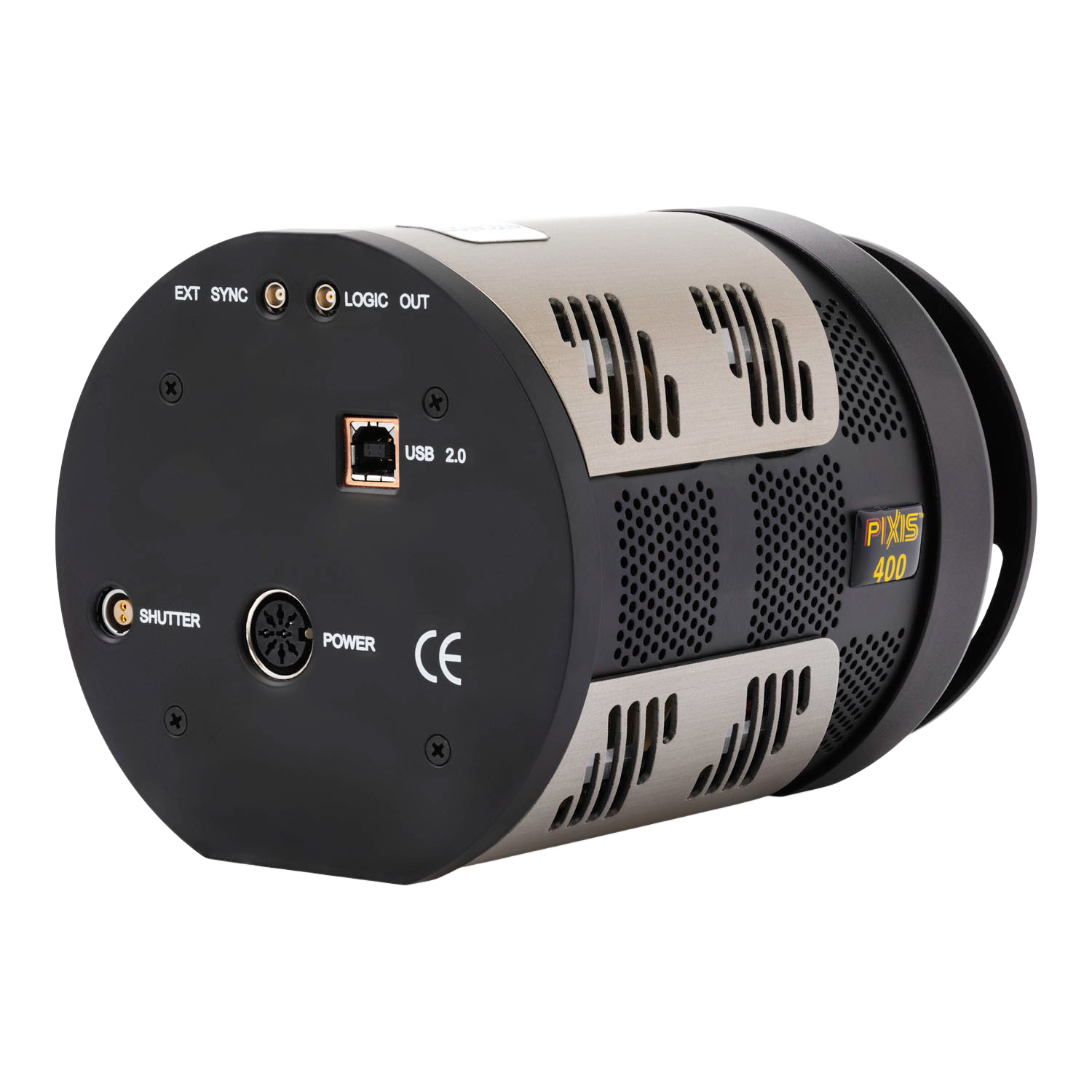

PIXIS 400 (3).png

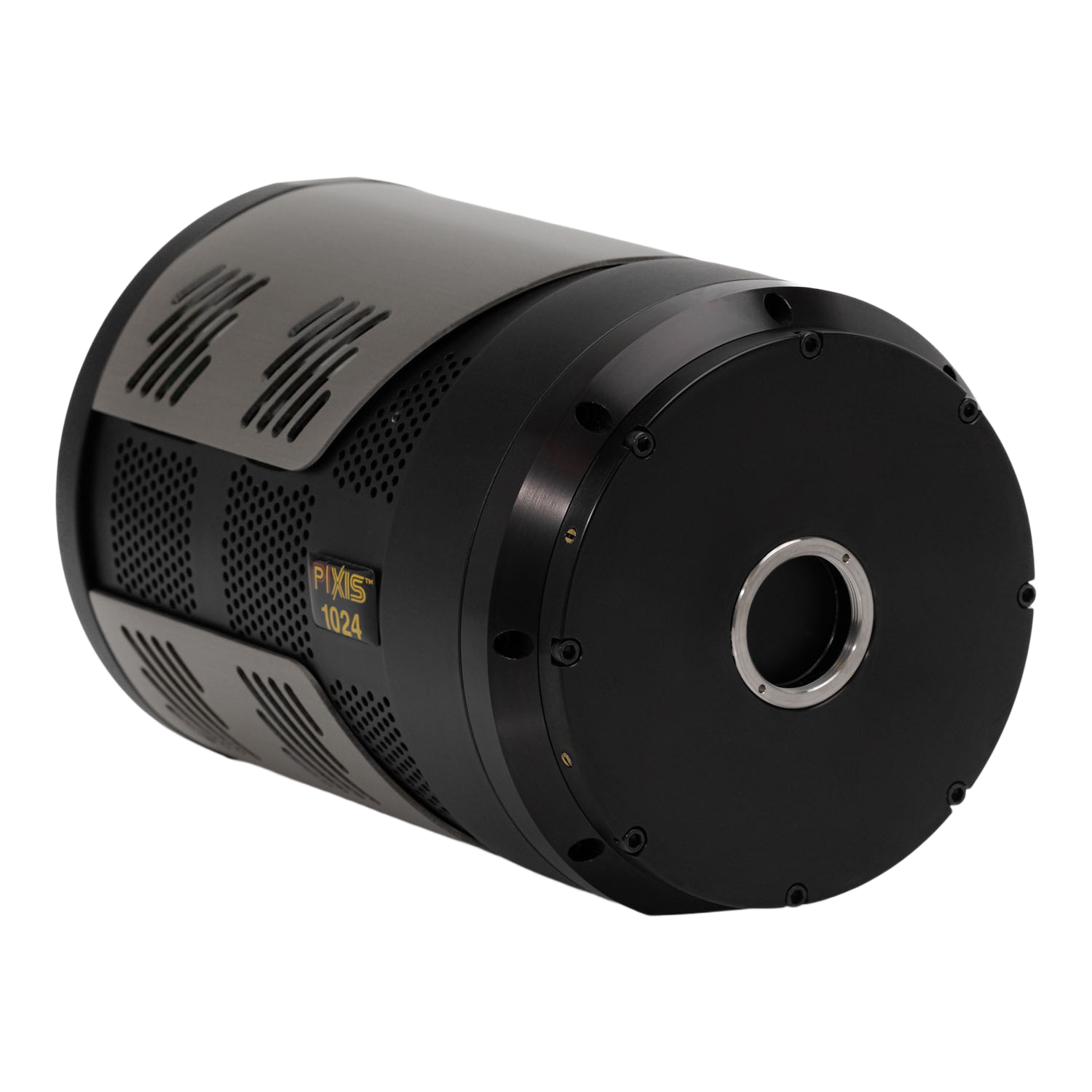

PIXIS 1024 Teledyne Vision Solutions (2).png


PIXIS:100PIXIS:400PIXIS:1024

Product Features:

  • Broad sensitivity from ~120–1100 nm
  • Unique vacuum technology
  • Supports various CCD sizes with flexible readout
  • Deep cooling down to –90 °C

Specifications:

ModelPIXIS:1024PIXIS:1300PIXIS:2048PIXIS:100PIXIS:400PIXIS-2KPIXIS-256
Active Pixels1024×10241340×13402048×20281340×1001340×4002048×5121024×256
Pixel Size13×13 μm20×20 μm13.5×13.5 μm20×20 μm20×20 μm13.5×13.5 μm26×26 μm
Sensor TypeBRX, BR, BX, B, BUV, FBX, B, BR, FBRX, BR, BX, B, BUV, FBRX, BR, BX, B, FBRX, BR, BX, B, FBX, B, BUVBR, E
Readout AmplifierSingleDualDual ModeDualDualDual ModeSingle

ProEM Series (EMCCD Cameras)

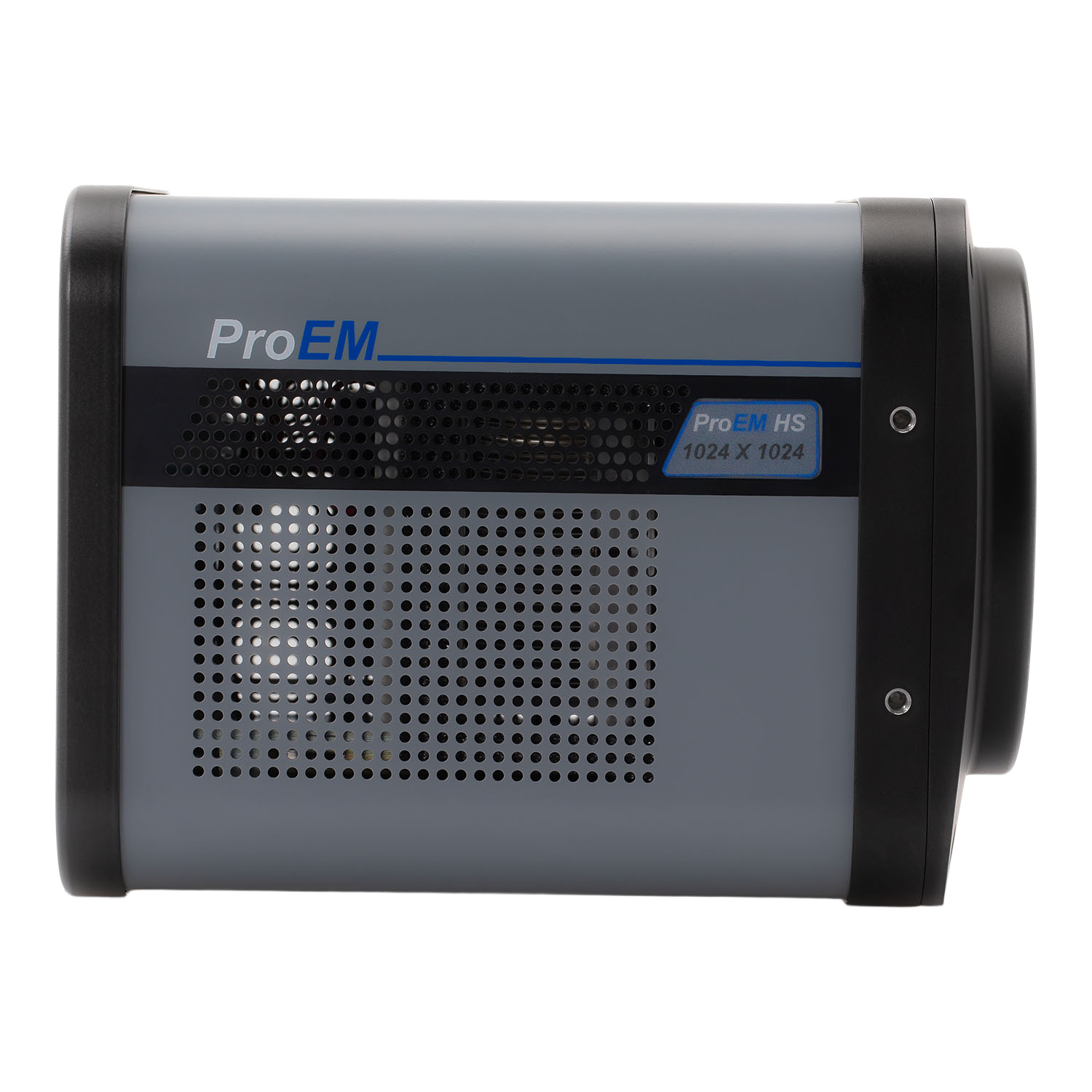

ProEM-HS 1024 (1).png

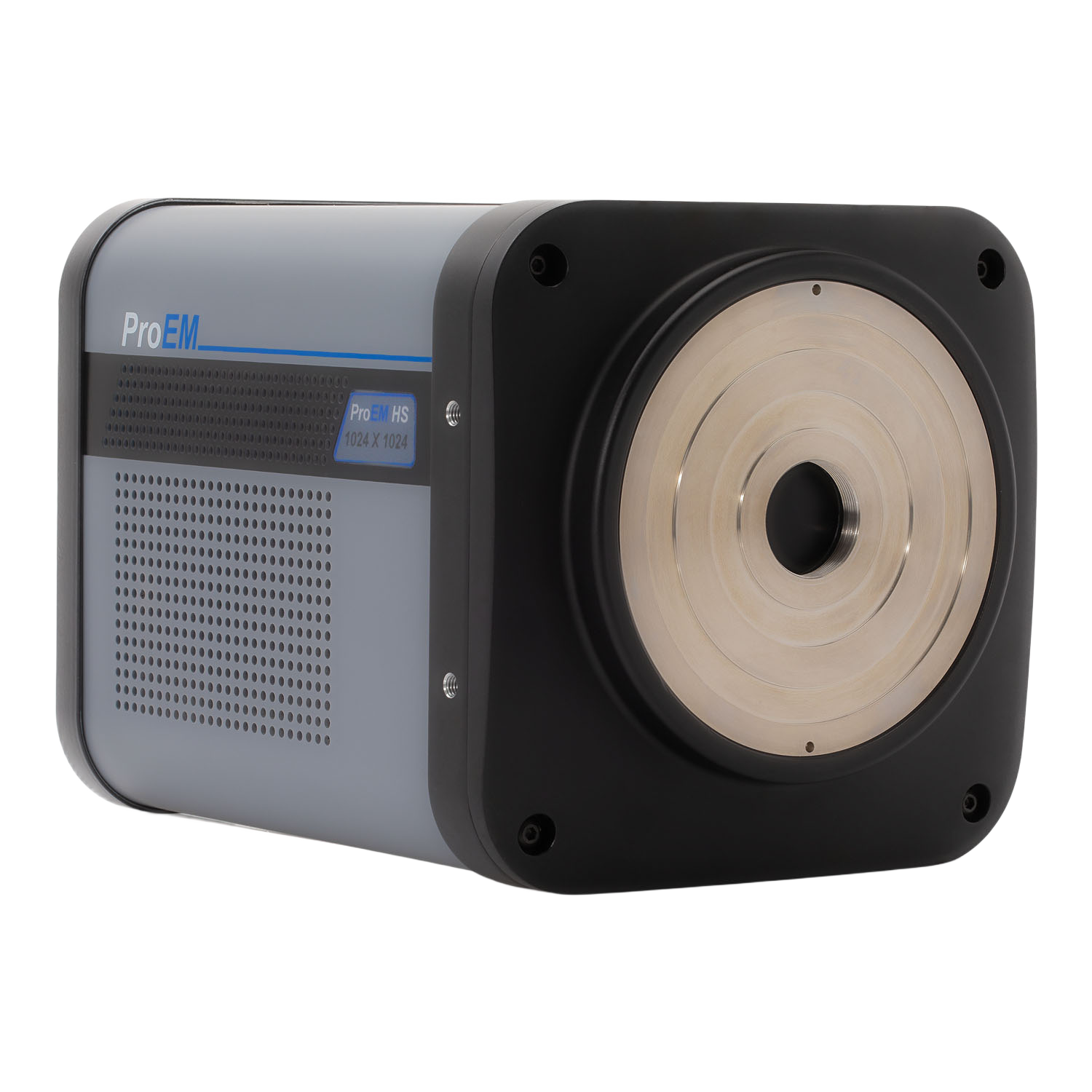

ProEM-HS 1024 (2).png

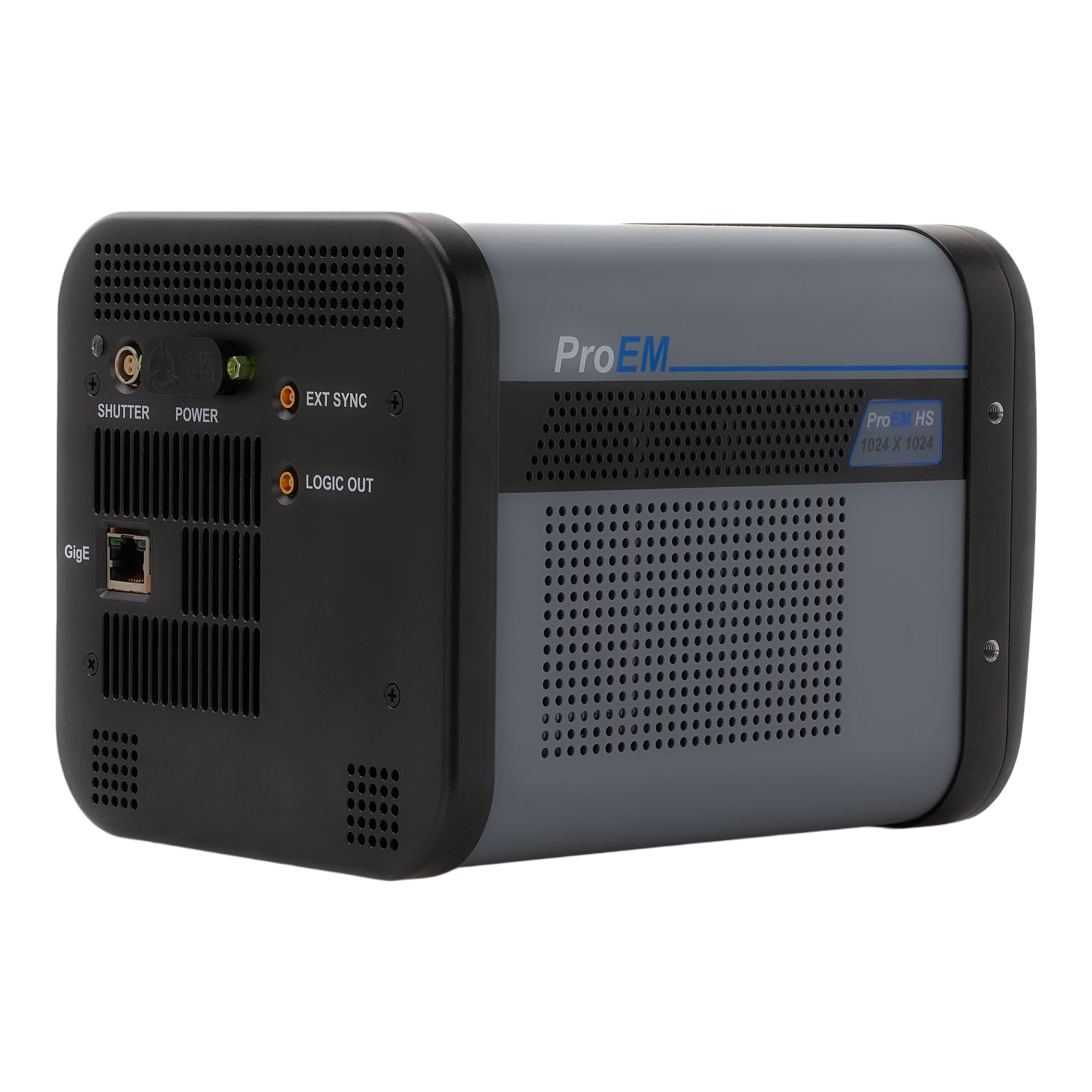

ProEM-HS 1024 (4).png

ProEM-HS 1024

Product Features:

  • EM gain technology
  • Ultra-low dark current, high sensitivity
  • Deep cooling to –80 °C
  • Typical dark current < **0.001 e?/px/s**

Specifications:

ModelProEM HS:512BXProEM HS:1KBX3-10μmProEM HS:1024BX3ProEM:16002ProEM:16004
Active Pixels512×5121024×10241024×10241600×2001600×400
Pixel Size16×16 μm10×10 μm13×13 μm16×16 μm16×16 μm
Dark Current
(e?/px/s)		0.0010.0002 @ –70 °C
0.04 @ –55 °C		0.0002 @ –70 °C
0.04 @ –55 °C		<0.01 @ –60 °C<0.01 @ –60 °C

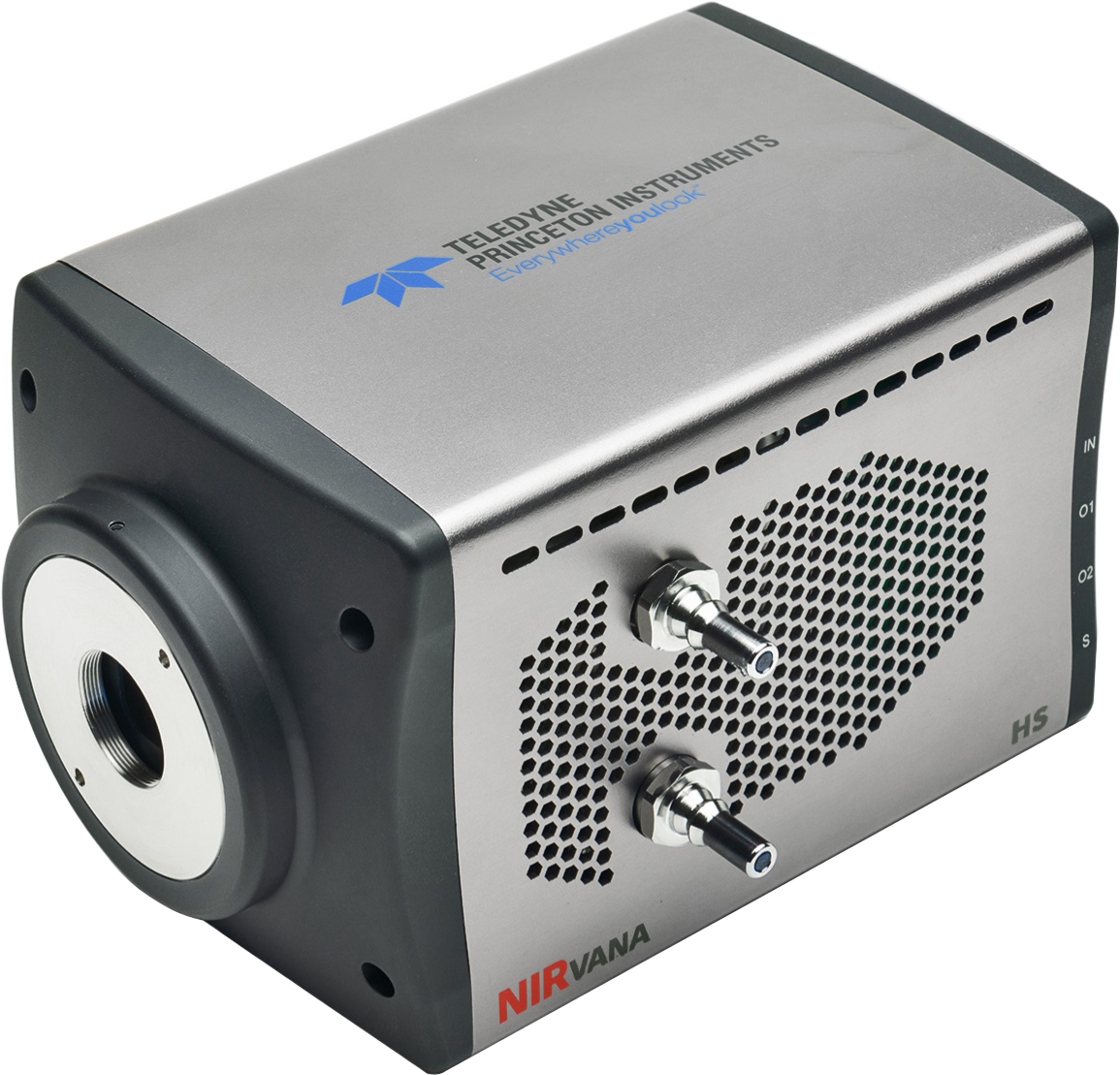

NIRvana Series (InGaAs NIR Cameras FA)

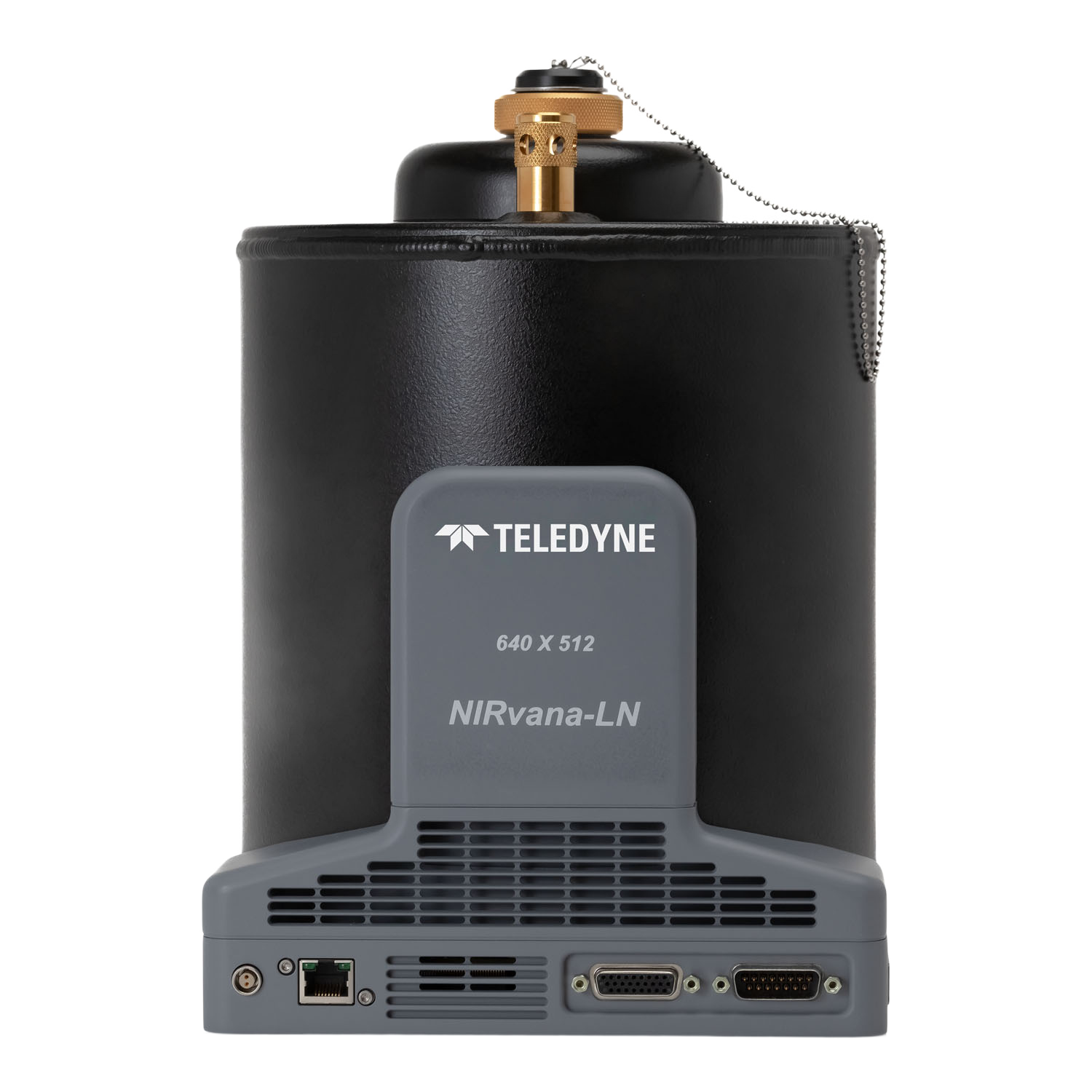

NIRvana LN (5).png

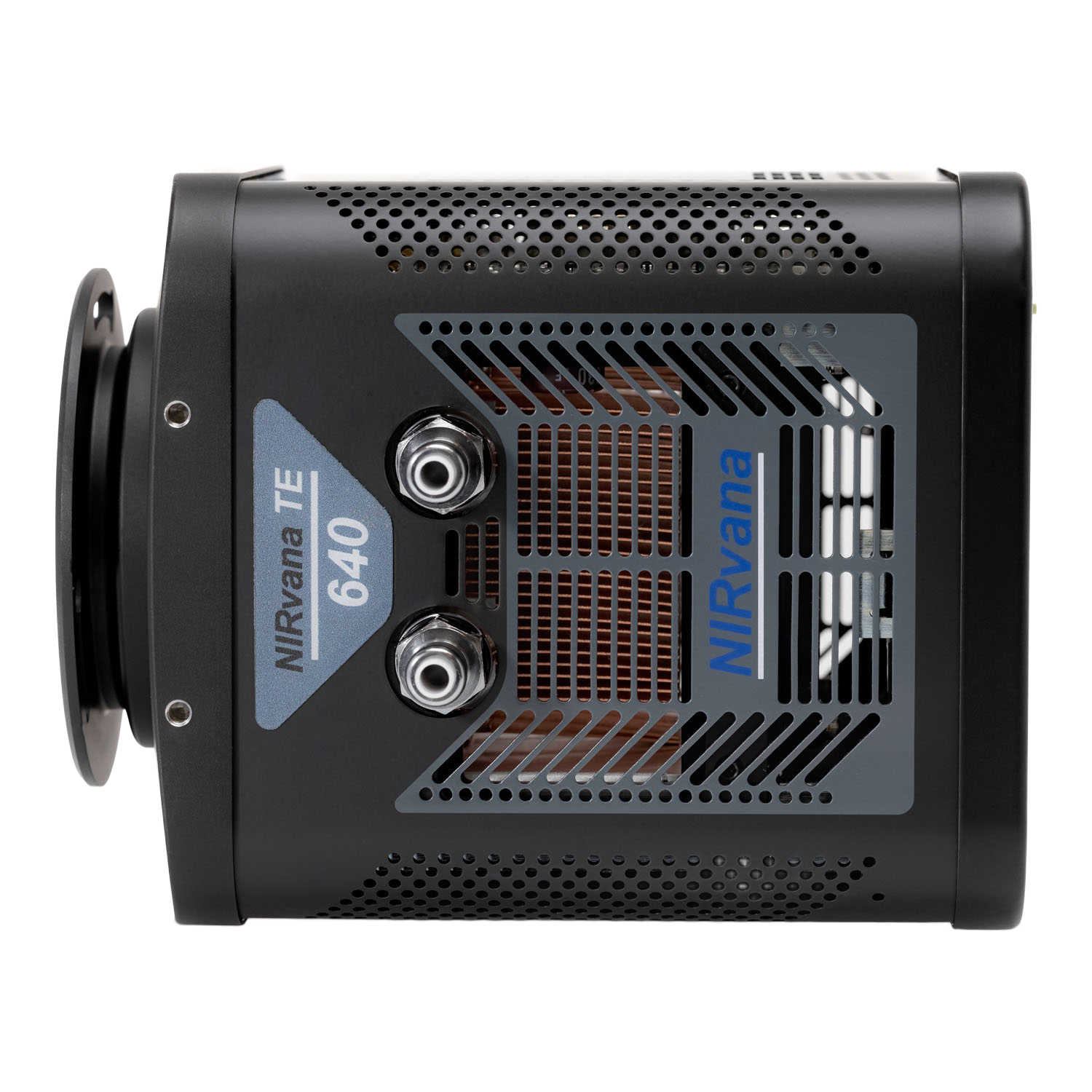

NIRvana: HSNIRvana: 640NIRvana: LN

Product Features:

  • Large pixels (20×20 μm)
  • Low dark current <50 e?/px/s
  • Exposure from μs to minutes
  • Typical dark current <0.001 e?/px/s

Specifications:

ModelNIRvana: HSNIRvana: 640NIRvana: LN
Wavelength Range900–1700 nm900–1700 nm850–1550 nm
Active Pixels640×512640×512640×512
Pixel Size20×20 μm
Imaging Area12.8×10.24 mm
Dark Current
(e?/px/s)		<500<40<10
Recommended Exposure2 μs–1+ min2 μs–10+ min1 s–60+ min
Frame Rate250 fps110 fps2.5 fps

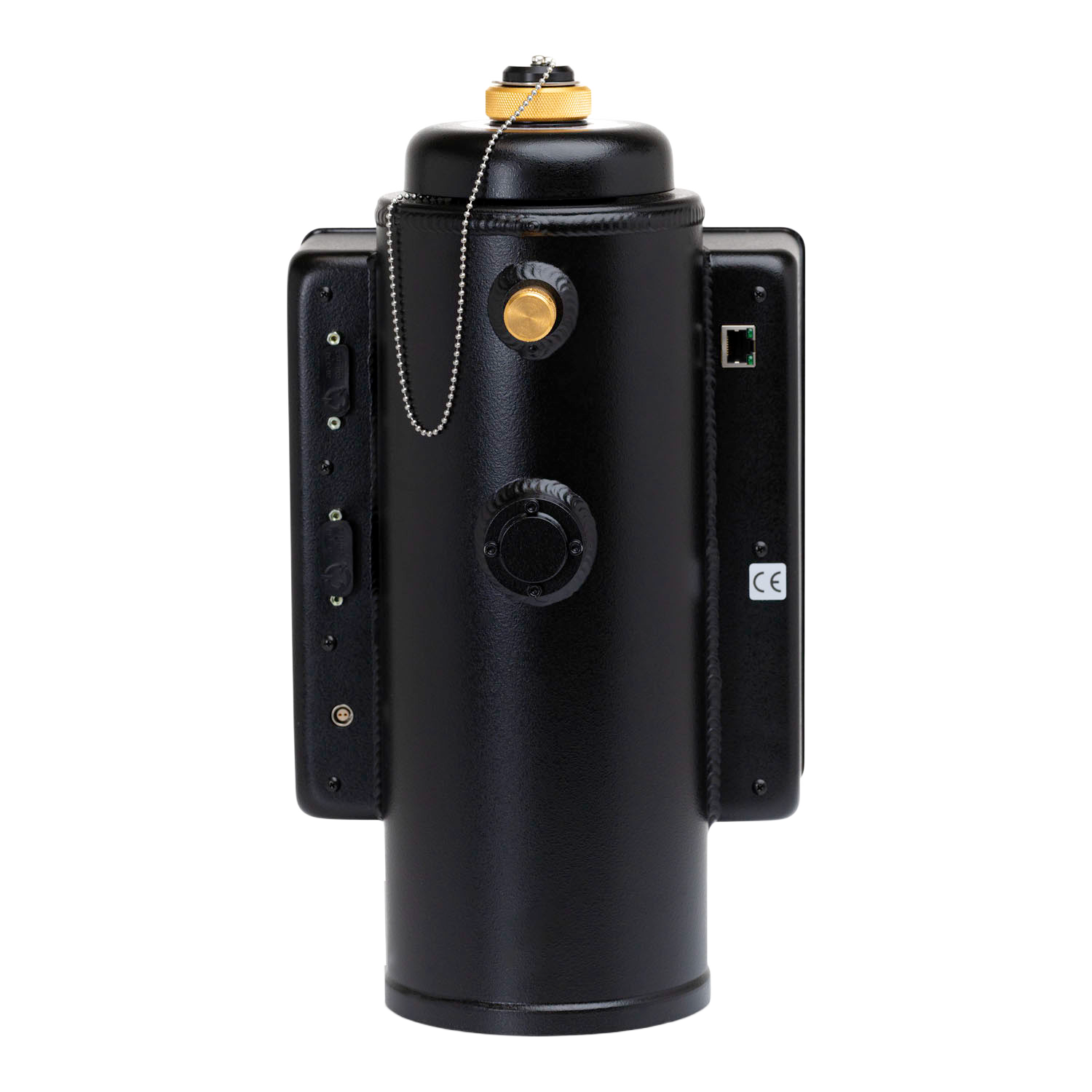

PyLoN-IR Series (InGaAs NIR Cameras LA)




PyLoN-IR: 1024 Series

Product Features:

  • Liquid-nitrogen cooling to –100 °C
  • Supports extended exposures
  • Ultra-low read noise
  • Built for extreme low-light NIR tasks

Specifications:

ModelPyLoN-IR: 1024-1.7PyLoN-IR: 1024-2.2
Wavelength Range800–1700 nm1000–2200 nm
Active Pixels1024×1
Cooled Temp.–100 °C
Min Exposure20 μs
Typical Read NoiseLow Gain<40 e? RMS

Comparison Summary:

  • PIXIS: Ideal for standard high-sensitivity imaging – strong cooling, flexible architecture.
  • ProEM: Suited for low-light, fast imaging – EM gain boosts SNR.
  • NIRvana: InGaAs NIR cameras for scientific NIR applications.
  • PyLoN-IR: Liquid-nitrogen cooling, long exposures – for extreme low-light NIR imaging.

For application-specific recommendations (Raman, fluorescence, IR spectroscopy, photoluminescence, etc.), see our article:    http://www.777xnxx.com/news/353.html
