1030 nm ultrashort-pulse fs laser

PL Optics‘ RAS-FP Series delivers ultrashort <100fs pulses and high energy for advanced ultrafast spectroscopy, attosecond science, and micro/nanomachining.

在線咨詢

產品介紹

RAS-FP Series Ultrashort-Pulse Femtosecond Lasers are our next-generation RAS lasers, designed to overcome the common limitation of Yb-based systems in achieving extremely short pulse durations.

The RAS-FP Series compresses standard Yb-laser pulses from several hundred femtoseconds down to < 100 fs, while delivering up to 1.8 mJ per pulse—dramatically expanding the capabilities of Yb ultrafast lasers. In addition to ultrashort pulses, it offers excellent power stability and superior beam quality, making it an ideal, high-stability, user-friendly source for a wide range of industrial and scientific applications.

Technical Advantages：

Pulse width < 100 fs
Tunable repetition rate
Reliable amplification & pulse-compression technology
Integrated electro-optical-mechanical design

Applications：

Ultrafast spectroscopy
High-harmonic generation
Attosecond science
Micro-/nanomachining

Parameter	RAS-FP-8	RAS-FP-16	RAS-FP-20
Center Wavelength	1030±5nm
Average Power	>8W	>16W	18W
Pulse Width	<100fs
Repetition Rate	Single-pulse–1 MHz (optimized at chosen frequency)
Single-Pulse Energy	>800μJ@10KHz	>300μJ@50KHz	>1.8mJ@10KHz
Output	Free-space
Beam Diameter	1–3mm
Beam Quality (M2)	<1.4	<1.3	<1.4
Power Stability	<2%rms	<1%rms	<2%rms

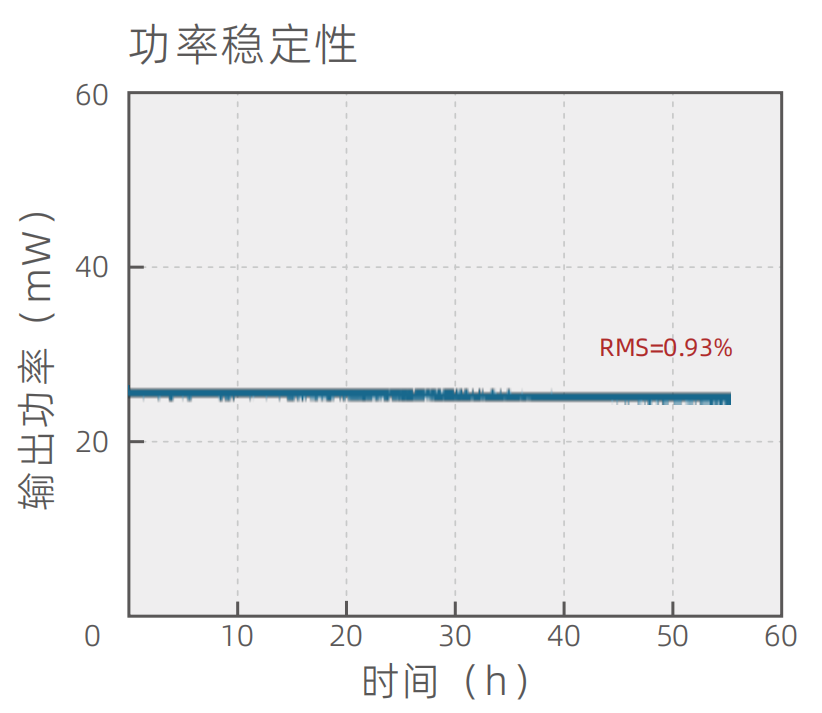

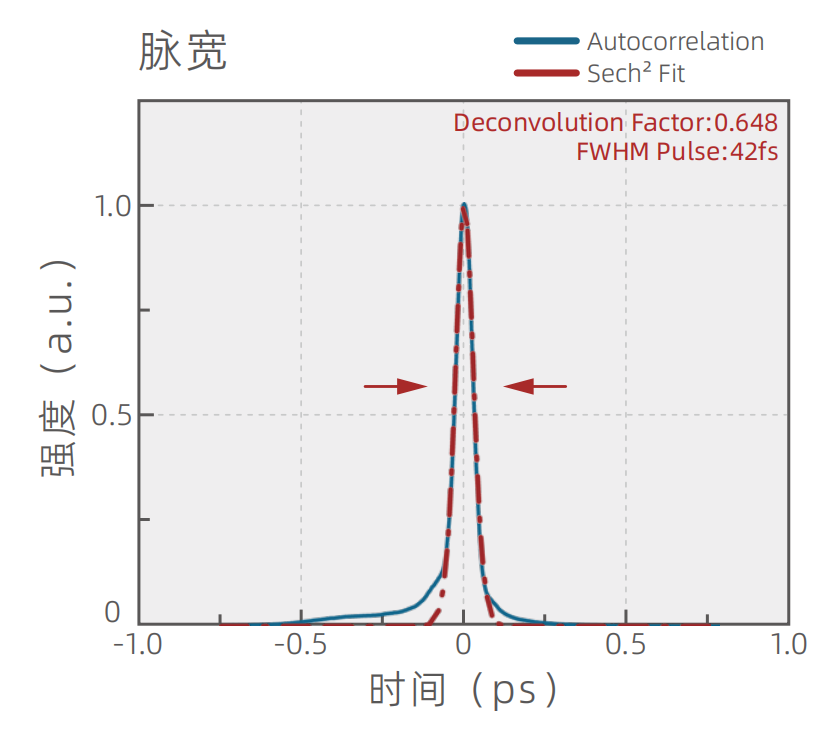

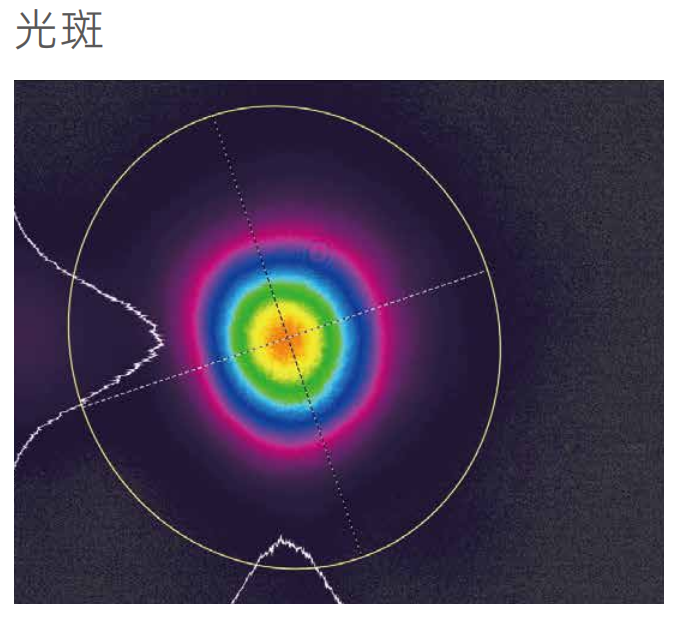

Test Data：
