Products
當(dāng)前位置： 首頁(yè) > Products > Laser > Femtosecond Laser

1030 nm Fiber Femtosecond Laser

PL Optics‘ VAS Series offers all-fiber femtosecond lasers with μJ-level pulse energy and ultrashort pulses for ultrafast spectroscopy, multiphoton imaging, and micro/nano-machining.

產(chǎn)品介紹

VAS Series Fiber Femtosecond Lasers are our fully all-fiber femtosecond sources—engineered in-house to deliver μJ-level pulse energy alongside ultrashort pulse durations. Thanks to their all-fiber architecture, the VAS series offers exceptional beam quality, a compact footprint, and rock-solid reliability.

With a broad parameter range and multiple configuration options, the VAS series is ideal for diverse applications—from micro-/nano-machining to biological imaging.

Technical Advantages：

  • Reliable MOPA amplification for high repetition rates
  • Adjustable pulse width
  • Burst Mode with single-pulse editing and PSO support
  • Integrated electro-optical-mechanical design

Applications：

  • Ultrafast spectroscopy
  • Multiphoton imaging
  • Photolithography
  • Micro-/nano-machining
ParameterVAS-5VAS-20VAS-50VAS-CVAS-FP
Center Wavelength1030±5nm
Average Power5W20W50W10–20W>20W
Pulse Width<350fs–10ps<100fs
Repetition RateSingle-pulse – 1 MHz (tunable);
shortest pulse optimized at specified frequency
Single-Pulse Energy5μJ20μJ60μJ100–200μJ>20μJ@1MHz
Beam Diameter1–3mm
Extinction Ratio>20dB
Output ModeFree-space/
Power Stability (rms)<0.5%rms<1%rms
Beam Quality (M2)<1.3
Spectral Bandwidth>5nm/
Optional AccessoriesSHG (515 nm)/ THG (355 nm)/ All-in-one 3ω/
Dimensions (L × W × H)460×426×115mm638×396×119mm700×496×153.5mm/

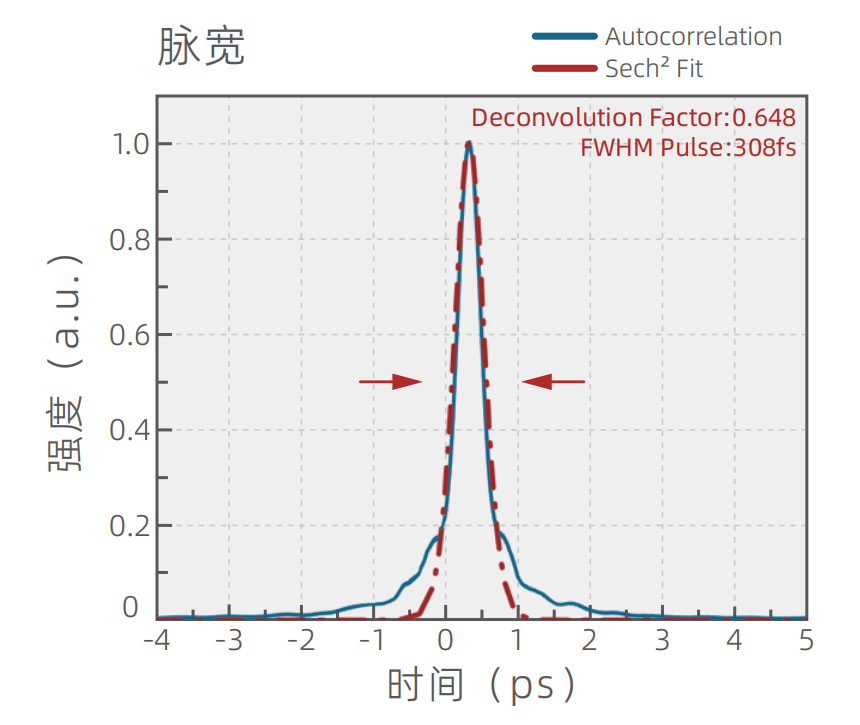

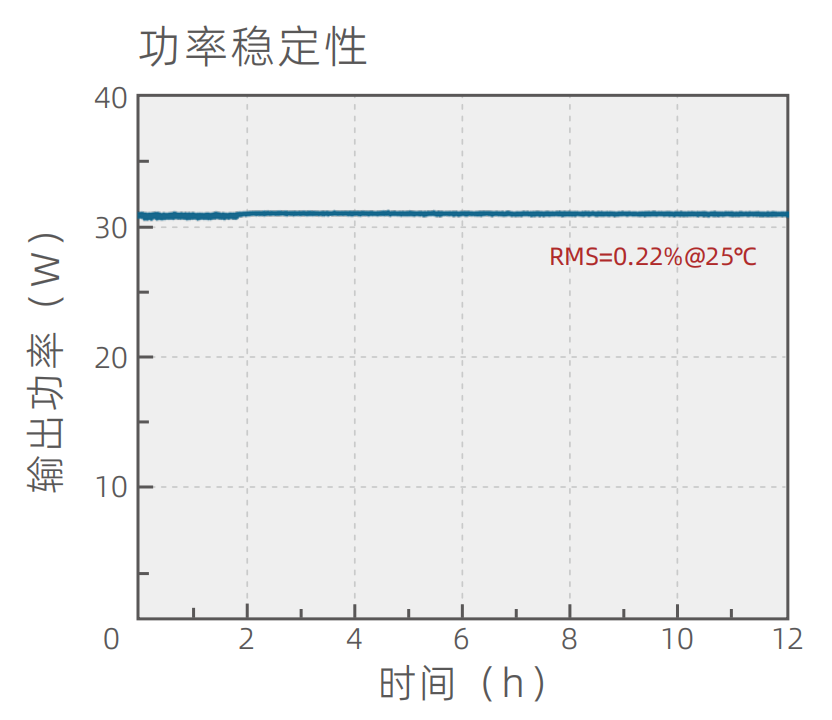

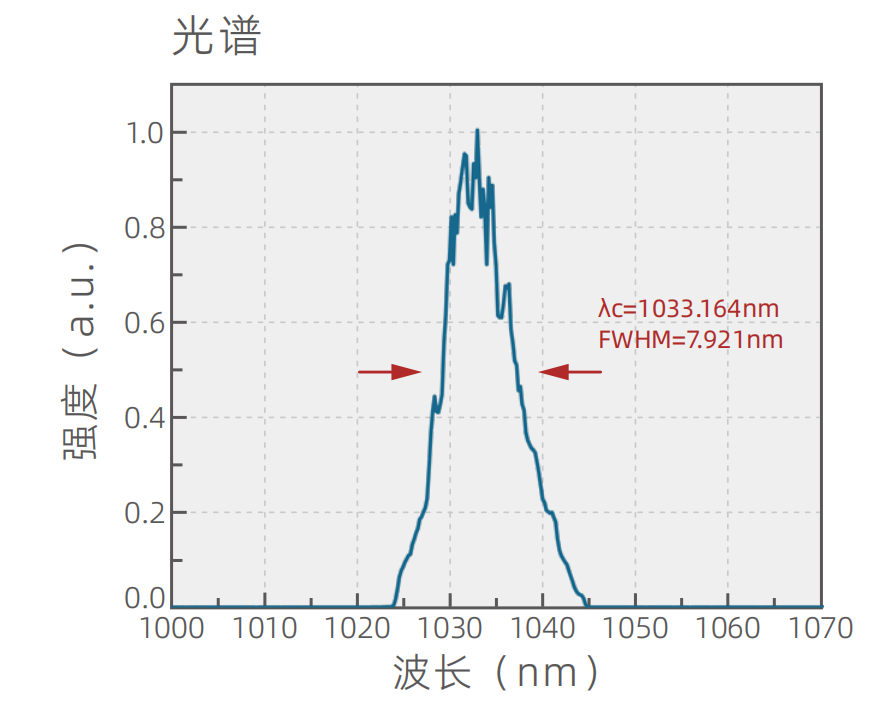

Test Data：





The VAS series femtosecond lasers are available with single-wavelength outputs (1064 nm, 532 nm or 355 nm) or three-wavelength output, and we can also provide fully customized solutions to meet your exact requirements—contact us for details.

VAS series femtosecond lasers can be paired with our OPA parametric amplifier modules to deliver continuously tunable output across a broad UV–IR spectrum.
